The Phone Feed¶

Beebo creates two private channels in the app's channel list:

Channel	What it is
`beebo-status`	Lines the node posts about itself. Anything you type here is ignored.
`beebo-cli`	Type a command and the node's reply appears in the channel.

They are ordinary channels with a random secret, listed like any other. Nothing in them is ever sent over the air, and a message received over the air on these channels is dropped. You can rename them. A feed that you delete is recreated at the next boot with a new secret.

Both roles have them. A repeater has no contacts and refuses messages to normal channels, but the feed works as in a companion.

Status lines¶

Every line starts with the node's name.

Line	When
`boot <version> <role> <reset reason>`	The node has started.
`mon <on or off> rx=<n> tx=<n> qos=<pct or -> soh=<pct>`	A minute after boot, then hourly: packets received and sent, the share of sends confirmed by an ACK or a heard repeat (`-` until there is data) and the node's health score.
`warn: txpower=<n> dBm underdrives the PA, run: settings radio.txpower 18`	At boot and when a trial is enabled, if the transmit power is under 16 dBm.
`trial waiting for traffic`	A trial is on but the node hears too little traffic to start.
`trial <setting> start profile=<name> a=<a> b=<b> blocks=<n> block=<s>s`	A trial begins.
`trial <setting> blk <i>/<n> pairs=<p> gain=<%> [<low>,<high>]`	A block closed. The interval appears once the trial has one.
`trial <setting> <result> a=<a> b=<b> pairs=<p> gain=<%> se=<%>`	A trial ended. See Setting Trials.
`trial <setting> <outcome>`	A switch declined to run: `skipped_same`, `skipped_no_control` or `skipped_underpowered`. See Setting Trials.

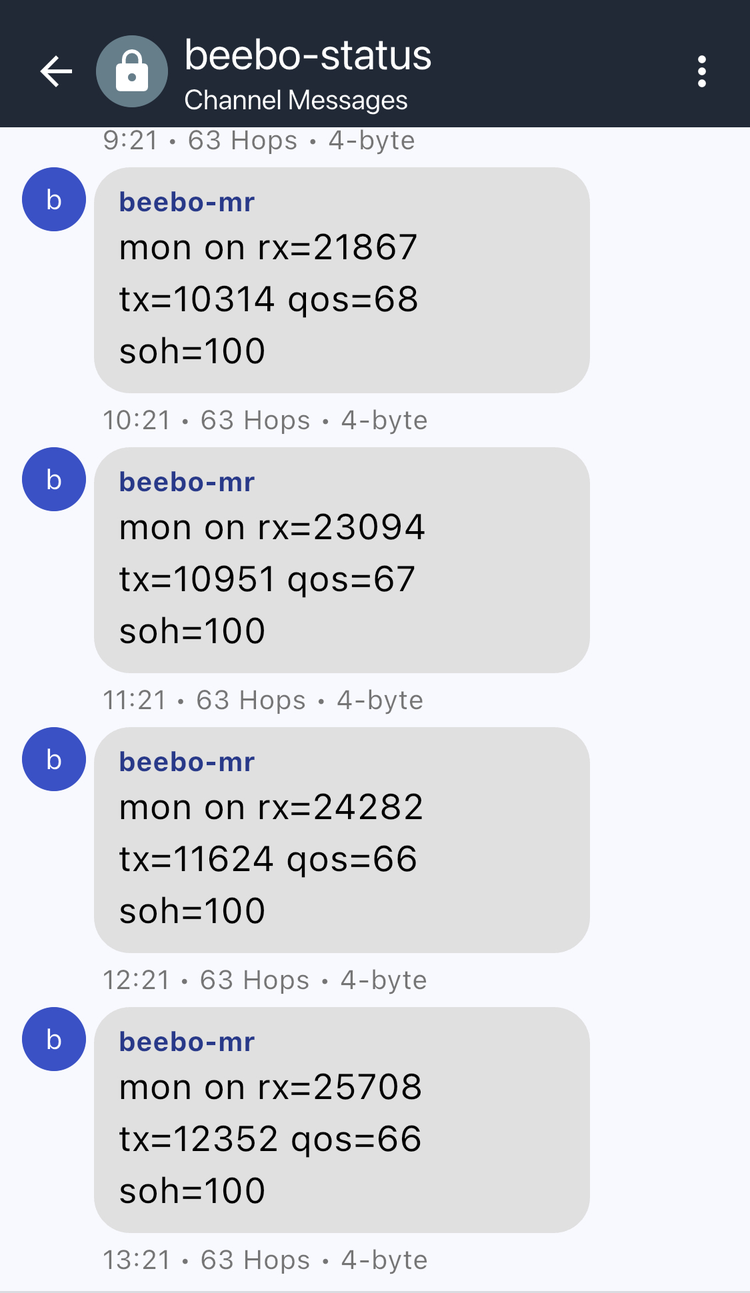

The beebo-status channel with hourly monitor lines

Commands¶

The beebo-cli channel runs the command on the live role. A reply over 160 characters is split into up to four numbered parts. A command with no output answers (no output). The same commands work in the app's own CLI screen, which shows the first 160 characters of a reply. They use the words of the beebo command line:

Command	What it does
`settings <path>`	Reads a setting, with the path `beebo settings` uses
`settings <path> <value>`	Sets it
`settings` and `settings <branch>`	List the names below the top level or a branch (`settings routing.tuning.trial`)
`status`, `status node`, `status radio`, `status resources`	Name, role, version, uptime, supply, faults; noise floor, RSSI, SNR and airtime; memory, contacts, messages and ring fill
`check`	The QoS and SoH verdicts of `beebo check`
`monitor`	Capture state and ring fill
`monitor status`, `monitor status health`, `... service`, `... rates`	The counters that are not zero (health faults, traffic and delivery) and the time shares of the node
`monitor start`, `monitor stop`, `monitor clear`	Resume or pause the capture, or empty the ring
`monitor capture` and `monitor capture <leaf> on\\|off`	Show or set what is captured: `enabled`, `rx`, `tx`, `radio`, `env`, `batt`, `tuning`, `event`, `path`
`monitor tuning trial`, `... start [switch...\\|all]`, `... stop`	The trial state, start it with the named switches, stop it (repeater role)
`battery state`	Whether a battery is present, the voltage and the charge state; `battery state <state>` forces the state for testing
`battery calibrate <volts>`	Sets `board.adc.multiplier` from a voltmeter reading at the battery; 4.2 V is a fully charged battery. The host takes the same argument
`advert flood`, `advert direct`	Send a flood or a direct advert
`neighbors peek`, `neighbors forget <hex>`, `neighbors discover [-t type]`	The live neighbor table, prune an entry, ask nearby nodes who they are (repeater role)
`region tree`, `region allow <name>`, `region deny <name>`, `region put`, `region remove`, `region save`, `region def`	The flood regions (repeater role)
`clock`, `reboot`, `ver`	The node's time, restart it, firmware version and build date

settings reaches the trial, routing, radio, FEM, battery, node and board settings that have a plain value. Commands lists what runs on the node and what stays on the computer. A repeater-only path answers ERR: needs role 'repeater', node is 'companion' on a companion. The rest of the tree, the downloads, the plots and the analysis are in beebo, on a computer. The older text commands (get, set) keep working: see the key list.

Limits¶

The feed queue lives in RAM, so a reboot loses lines that the app had not synced. The boot line is posted again.
When the queue is full, feed lines take priority over other messages.
